CST- RCS on a flat metal plate.
來源：edatop
更新時間：2024-08-25
閱讀：
Hi guys,
I am doing RCS on a flat metal plate.
I made the plane wave rotate around the flat metal plate.
but somehow i could not get the 0D results.
it always plot 1 point only.
Any idea?
please advice. Thanks
- - - Updated - - -

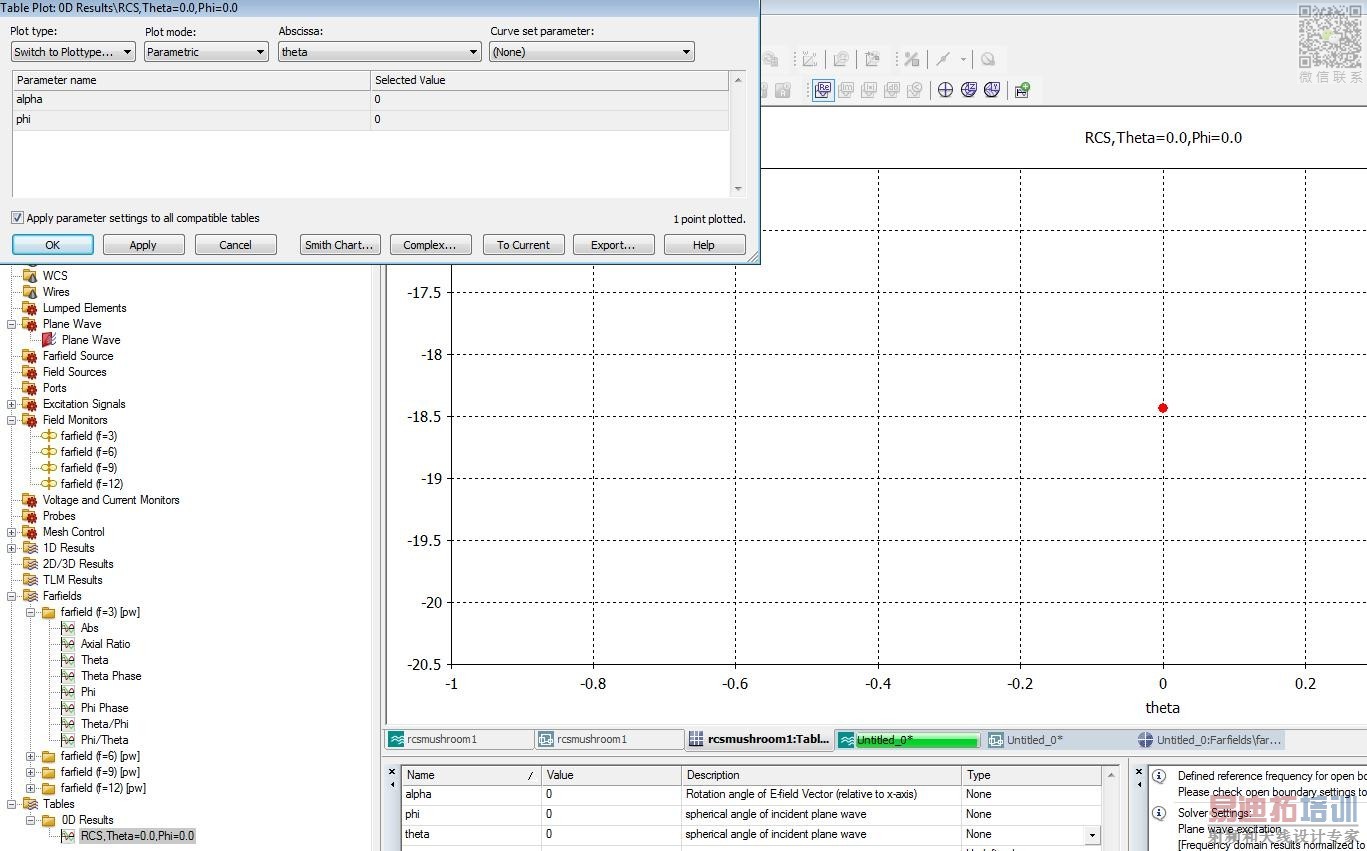

Hi guys, here are some pictures.
Why does it only plot 1 point?
A quick work flow:
1. a flat metal plate
2. PLane wave
3. parameter sweep on theta ( makes the plane wave rotate instead of flat metal plate).
please advice
Hi microelectronics,
I want to do ur same test ..by making rotate the plane wave around a resonance surface.
I'm doing that by parametrizing the coordinates of the plane wave vector but i have a problem on one of the directions..
how did u perform the rotating plane wave? i'm also using the farfield monitor data
thanks
