Hi guys, i just model a basic cpw. but i could not get the correct s-parameter result. I suspect it might be the port.
Do i need to add space? *background property*

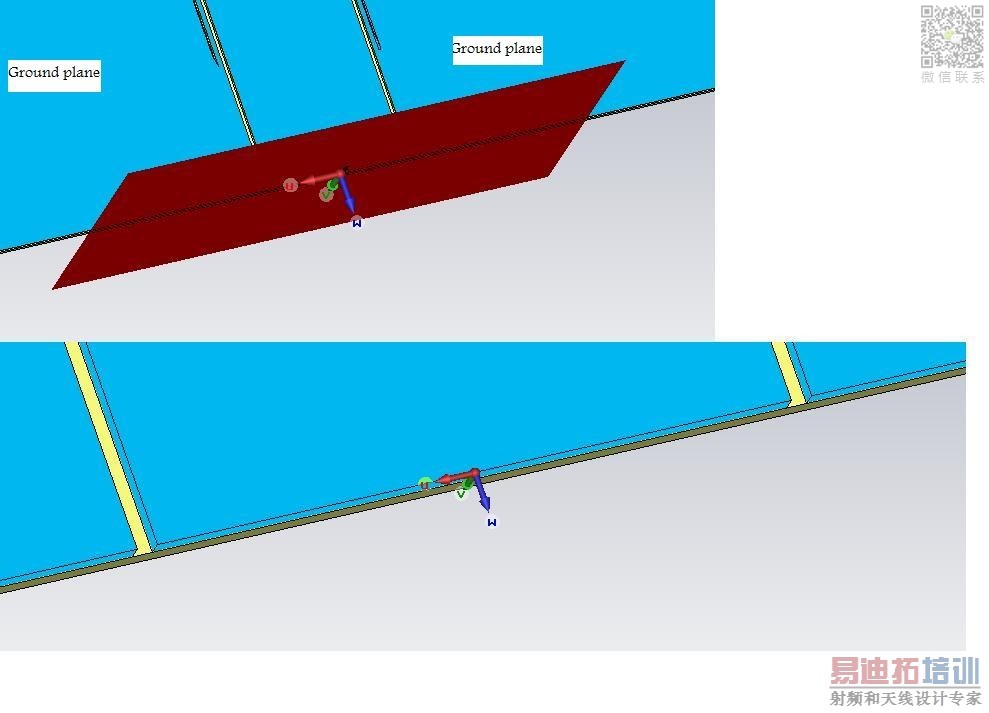

below is the picture.
thanks
Try to model sma connector and put waveguide port on it.
https://www.edaboard.com/thread265445.html -> here you can find my example at CST2011 with modeled SMA connector
Hi bubuta77,
Thanks alot!
Appreciate the help. =D
thank you
